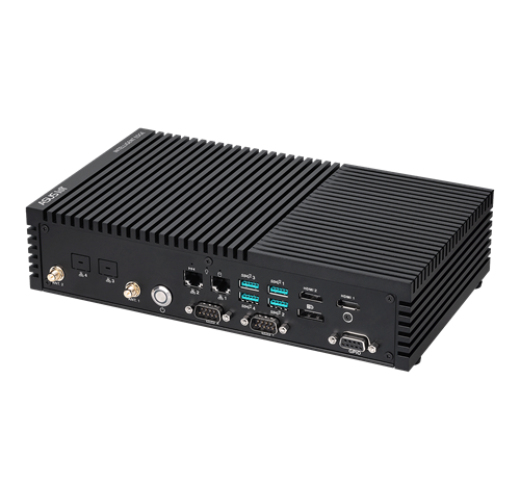

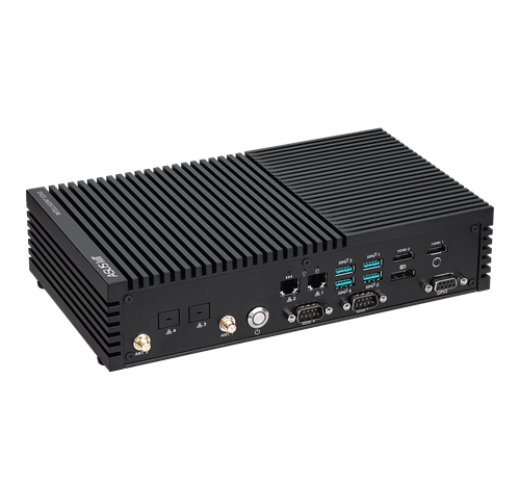

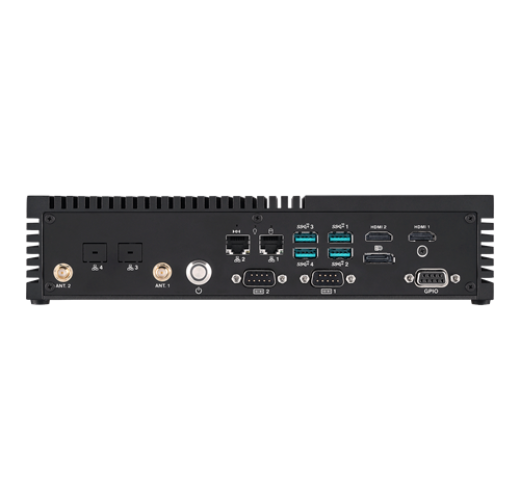

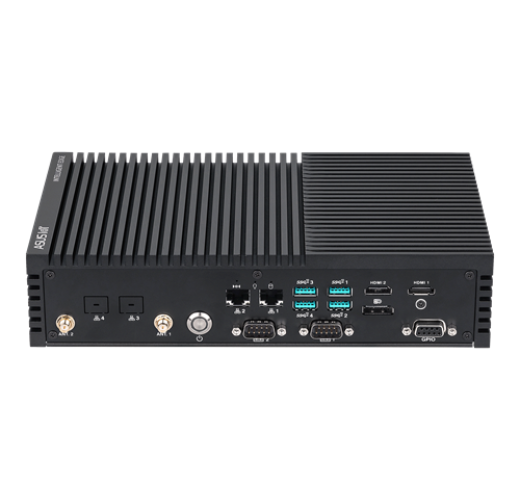

PE200U

Intelligent Edge Computer

Intel®12th Gen. CoreTM-I processors Intelligent Edge computer with various connectivity options, dual channel DDR5, multiple LAN, four COM, six USB, 9-36V DC

  • Rugged embedded computer with industrial fanless design
  • Various wireless connectivity options: Wi-Fi 5/6, Bluetooth, 4G/5G and GPS
  • Supports dual SO-DIMM DDR5 and 3 display ports (DP*1, HDMI*2)
  • Rich expansion capacity including POE and CANbus expansion module for diversified demand
  • Wide range of power inputs (9~36V) and operating temperatures (-20°~60°)
CONTACT

- Supports 2 x RS-232/422/485, 2 x RS-232

- Supports triple independent video outputs

- Rich expansion capacity including PoE, LAN, CANbus module

- Wide Operating Temperature Range: -20~60°C









System

CPU

Intel® Core™ i7-1265UE

Intel® Core™ i5-1245UE

Intel® Core™ i3-1215UE

TDP

15W

15W

15W

# of Cores

10

10

6

Memory

2 x SO-DIMM, DDR5 4800 MHz, supports up to 64GB

















External Interfaces



Display

2 x HDMI 2.0, supports up to 4K x 2K @ 60 Hz

1 x DP 1.2, supports up to 4096 x 2304 @ 60 Hz





Ethernet

1 x 1Gbps/100Mbps/10Mbps GbE port, RJ45 (Intel i219-LM)

  1. x 2.5Gbps/1Gbps/100Mbps/10Mbps GbE port, RJ45 (lntel i225-V)
  2. x 802.11af PSE ports, RJ45 (optional)

2 x 10/100/1000 ethernet ports, RJ45 (optional) *either one



USB

4 x USB 3.2 Gen 2, type-A

2 x USB 2.0, type-A



Audio

1 x Mic-in, phone jack

1 x Line-out, phone jack



COM

2 x COM: RS-232/422/485, DB9

2 x COM: RS232, DB9

GPIO

1 x 8bit GPIO, DB9 (Female)

Storage

SATA

1 x SATA 6G connector supports 2.5'' SSD







Expansion Slot

Mini PCIe

1 x Mini PCIe socket (PCIe / USB 2.0 mode)

M.2 M Key

1 x M.2 2280 M-key socket (PCIe Gen4 x4/ SATA) for NVMe SSD



M.2 E Key

1 x M.2 2230 E-key socket (USB2.0/ CNVi mode/ 2x PCIe x1) (supports Wi-Fi/BT module)

SIM

1 x nano-SIM slot

Power

Power input

9 to 36 V DC, 2-pin terminal block



Mechanical

Mounting

Wall-mount/ Din Rail/ VESA mount

Dimensions

254 (H) x 147 (W) x 57 (D) mm

Weight

2.45 kg









Environment

Operating Temp.

-20~60°C with wide temperature parts, fanless

Storage Temp.

-40~85°C

Relative Humidity

10 to 95% (non-condensing)

EMC

CE (ITE), FCC , VCCI, BSMI, RCM

Safety

UL,CB, CCC, BSMI, CE

Vibration

Operating, MIL-STD-810H, Method 514.8, Category 4; and 5 Grms, 5-500 Hz, 3 Axes

Shock

Operating, MIL-STD-810H, Method 516.8, Procedure I, Table 516.6-II; 50 Grms

Green

GA (RoHS)

Security

TPM

TPM v2.0 powered by Nuvoton NCPT 750 (Optional)



Others

Watch dog timer

Yes.

Operating System

Windows® 10 IoT Enterprise
